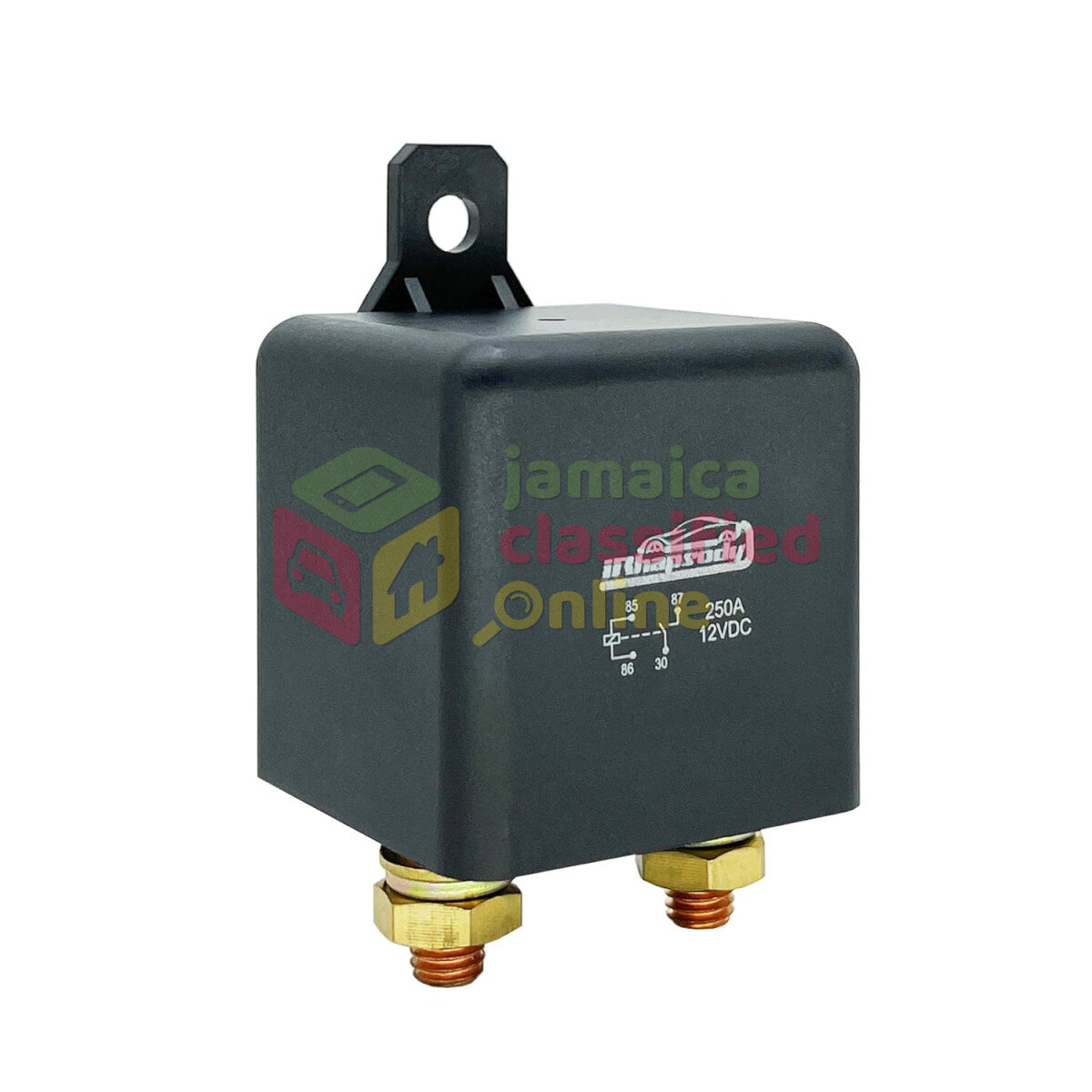

250A 12V Relay

Our coil power is 1.8W, and coil resistance is 80ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market
Large capacity, high current carrying capacity, heavy-duty make/break relay. But never go beyond its capabilities, try to stay 10 to 15% below what the rate is for
Rated voltage: 12vdc; Pickup voltage: 8v; Dropout voltage: 1.2v

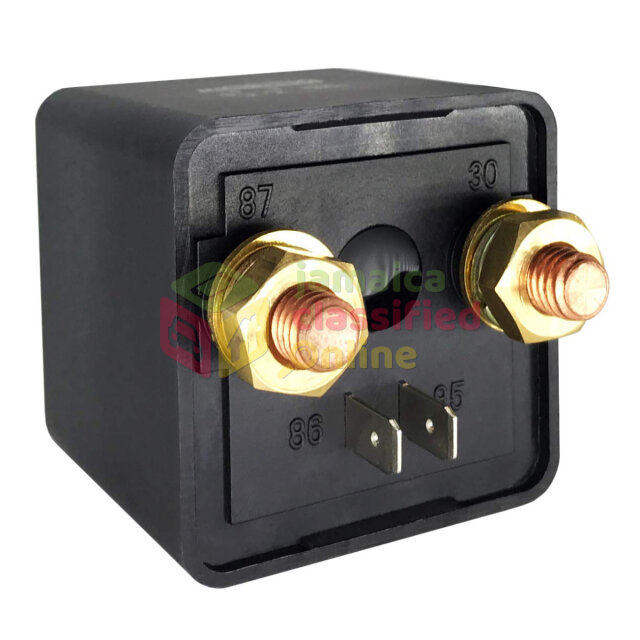

The size of the round stud terminals: M8/8mm
Ideal for split charging or any vehicle needing a high power relay
250a continuous load, surge upto 600az

12 V DC 250 Amp Split Charge Relay
Heavy Duty 4 Pin SPST (Single Pole Single Throw) relay

Nominal coil voltage: 12 V DC
Pickup voltage: 8 V DC
Dropout voltage: 1.2 V DC
Maximum applied voltage: 14 V DC
Max Switching Current: 250A
Max Switching Voltage: 14 V DC
Temperature Range: -30 ~ +80 degrees Celsius

Feature
1), Advantage - coil power: 1.8W; coil resistance: 80 ohms. It is more reliable than 2.4W (60 ohms) and 4.8W (30 ohms) relays on the market.
2), Large capacity: 250 amp high current carrying capacity, heavy duty make/break relay.
3), Ideal for split charging or any vehicle needing a high power relay.
